McIntosh MC75 Power Amplifier

McIntosh MC75 Power Amplifier
McIntosh MC75 Power Amplifier
McIntosh MC75 Power Amplifier
McIntosh MC75 Power Amplifier
McIntosh MC75 Power Amplifier
McIntosh MC75 Power Amplifier
McIntosh MC75 Power Amplifier
McIntosh MC75 Power Amplifier
Price : RM 24,800.00 RM 21,000.00

Model : MC75

Brand : MCINTOSH

Weight :
17240 G


-----------------------------------------------------  OVERVIEW  --------------------------------------------------

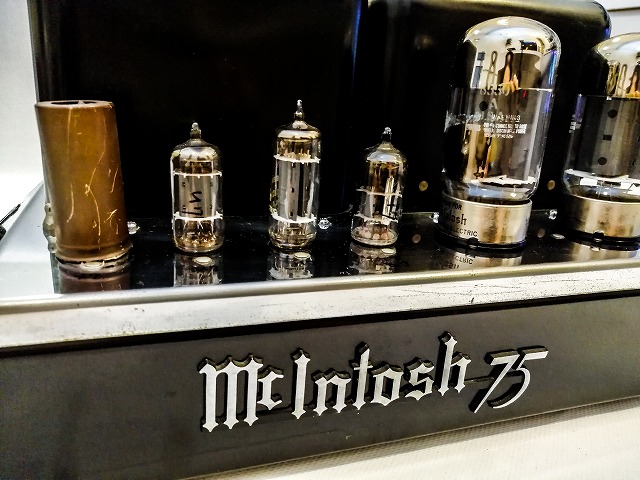

The MC75 mono vacuum tube power amplifier delivers modern performance standards in a classic design. It has all the features to meet the needs of today’s music enthusiast. As with all McIntosh mono amplifiers, the MC75 will provide ultimate stereo separation with each channel utilizing a separate amplifier. 75 Watts of power is output into a 2, 4 or 8 Ohm speaker with less than 0.5% distortion.

"The MC75s could play loudly with so little strain that I learned to be careful with the volume knob... Powerful, quiet and flexible, and they should mate well with a wide range of speakers." - The Audio Beat

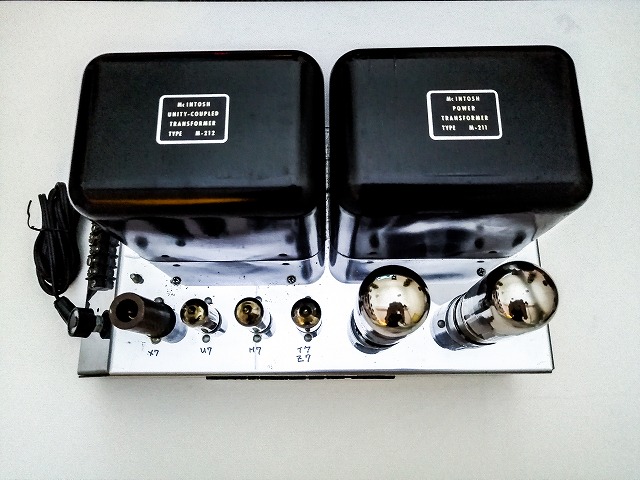

McIntosh’s patented Unity Coupled Circuit design provides low distortion, extended frequency response and long tube life. The MC75’s large, oversize power transformer provides unusually high power and dynamic response from a single pair of KT88 output tubes, once again setting the performance benchmark for tube amplification.

"A beautiful 'you are there' quality to the music" - Enjoy The Music

Balanced and unbalanced inputs combined with power control allow matching with all contemporary McIntosh preamplifiers and processors. Sentry Monitor™ tube protection circuit will ensure the MC75 will have a long and trouble free operating life. Contact your local dealer to learn more.



----------------------------------------------  SPECIFICATIONS  ----------------------------------------------

 Electronic Specificaitions

Power Output per Channel:

75W @ 2, 4 or 8 Ohms

S/N Below Rated Output:

110dB

Rated Power Band: 20kHz
Number of Channels: 1
Dynamic Headroom: 1.5dB
Frequency Response: +0, -0.5dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz
Total Harmonic Distortion: 0.5%
Damping Factor: >18 Wideband


 Control

Remote Power Control:

Yes, input and output

Multi-Channel DB25 Cable:

N/A



 General Specification

Circuit Confriguration:

Unity Coupled

Mono Parallel

No

Meter Light Switch: No
Illumination: Small Signal Tubes
Circuit Design: Vacuum Design
Output Type: Unity Coupled Output Tranformer
Balanced Input: Yes
Chassis Style: Polished Stainless Steel
Mono Bridege: No
Meters: No
Front Panel: N/A



 Connectivity

Speaker Binding Post Type:

Yes

 Dimensions & Weight

Product Dimensions: 45.09 cm (Incuding Cables) x 21.6 cm (Including Feet) x 21.59 cm
Net Weight: 17.24 kg
Shipping Weight: 19.73 kg

 McIntosh MC75 Power Amplifier Owner's Manual

https://www.thetubestore.com/lib/thetubestore/schematics/McIntosh/McIntosh-MC75-Owners-Manual.pdf
