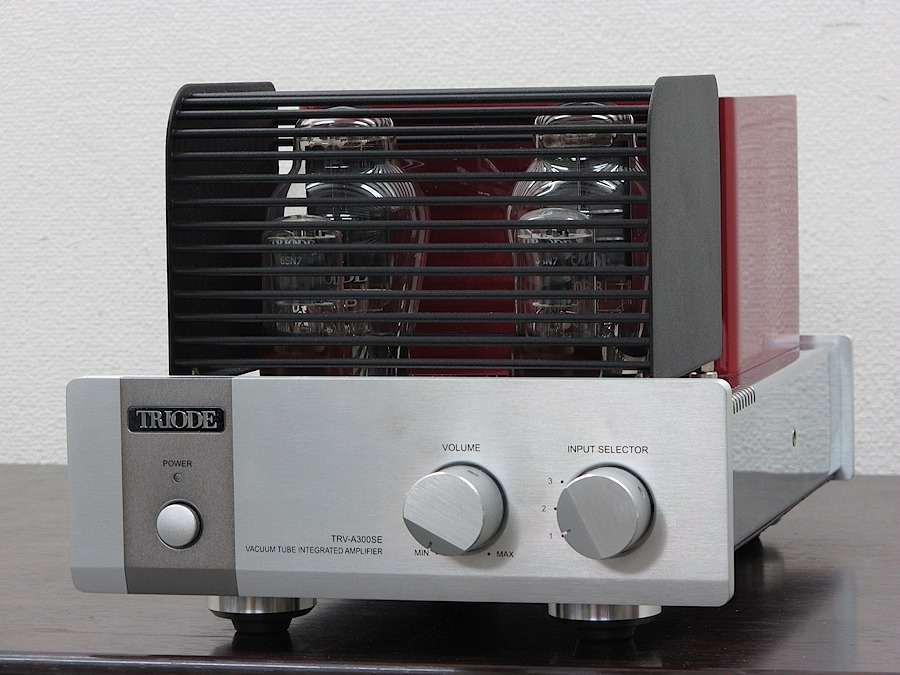

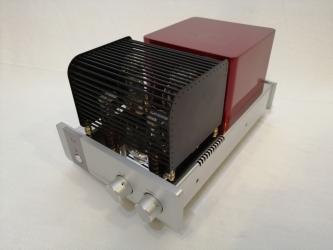

Model : TRIODE TRV-A300SE INTERGRATED TUBE AMPLIFIER
TRV-A300SE
300B A class single ended integrated amplifier
Circuit system 300B A class single ended integrated amplifier

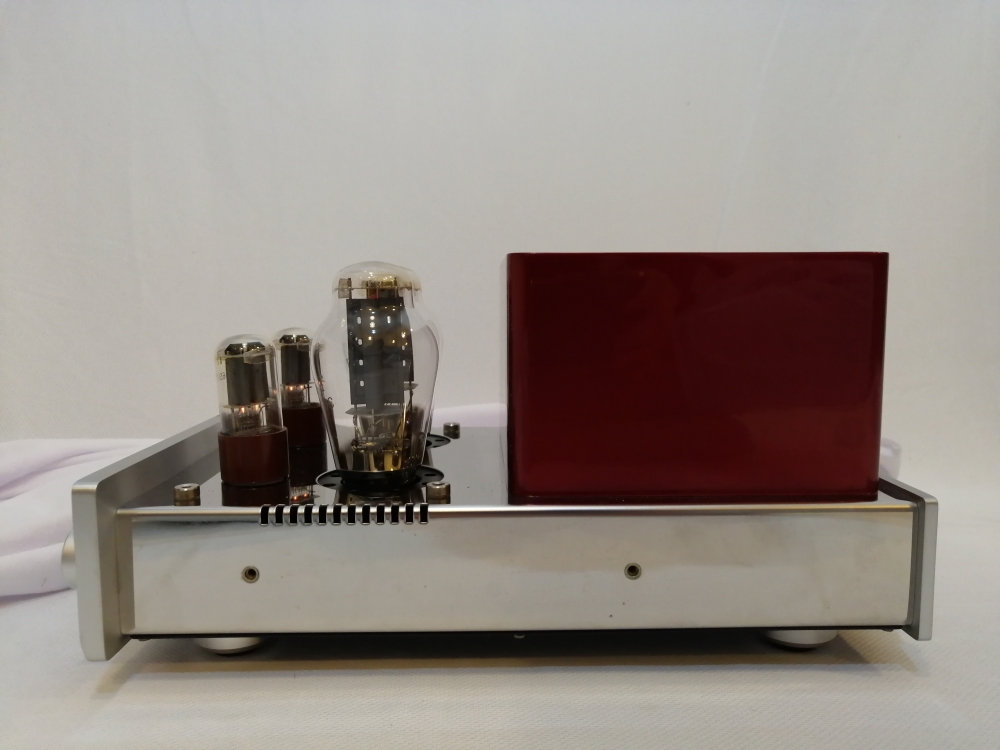

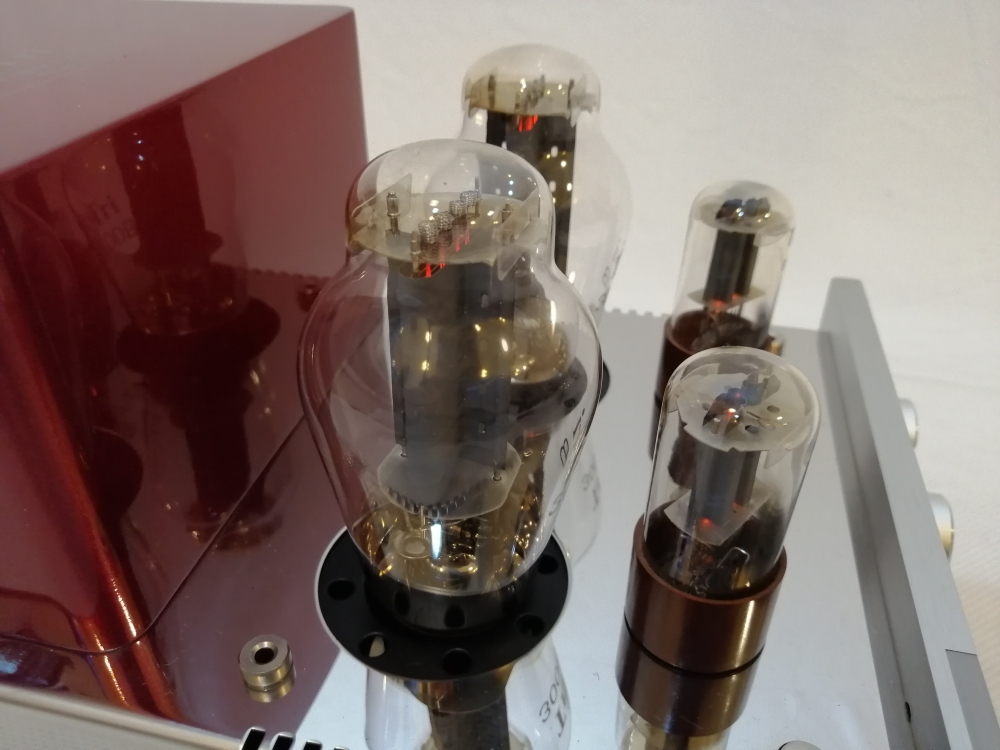

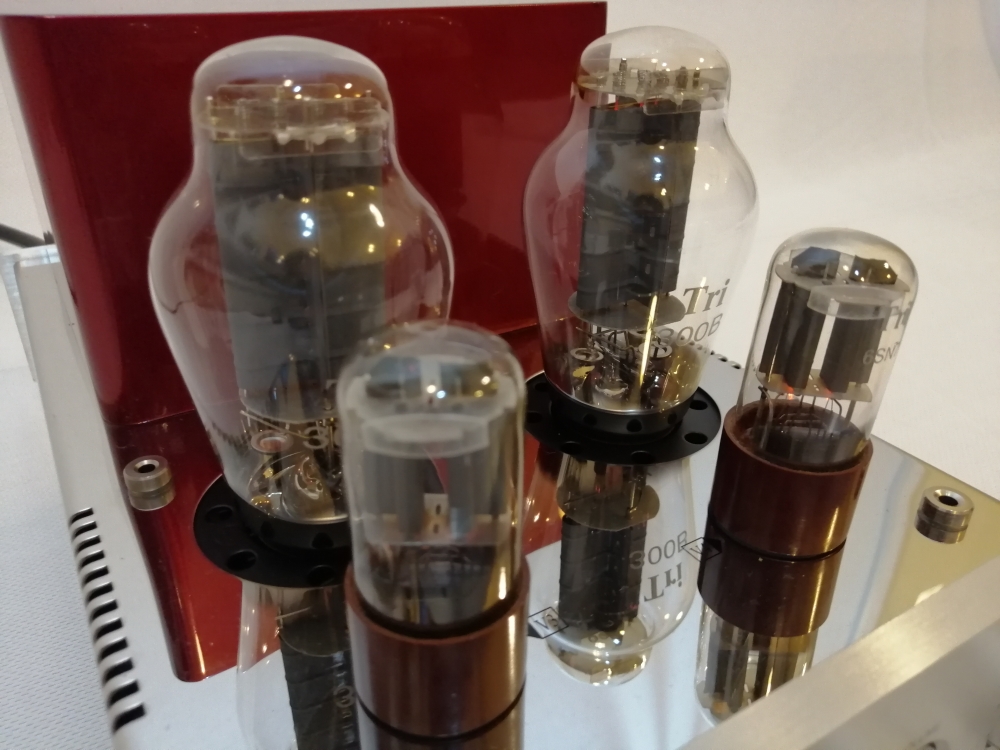

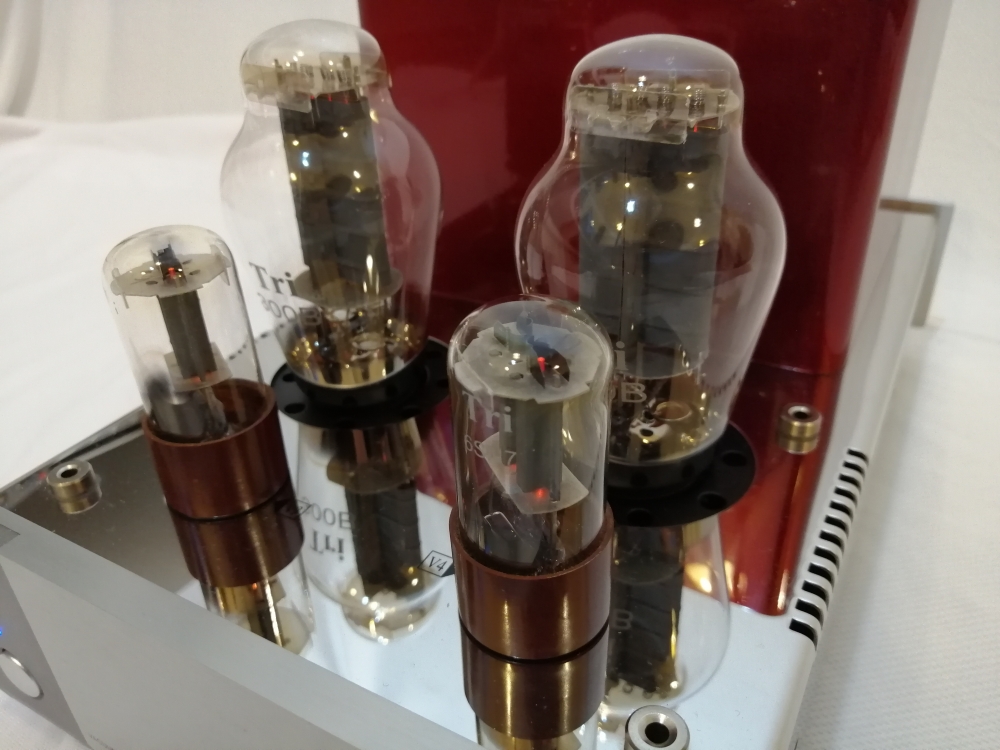

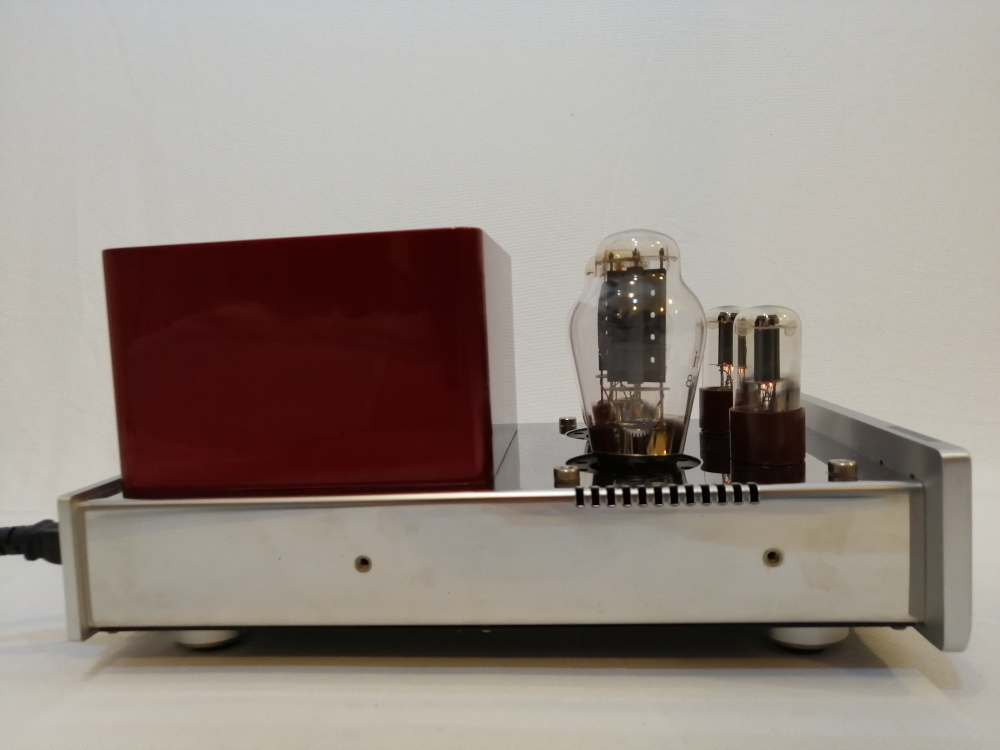

Tubes 300B*2 , 12AX7*1 , 12AU7*2
Bias Fixed bias
Output power A class 8W+8W at 8 ohms
Frequency response 10Hz-50kHz(-3dB)
S/N ratio 90dB
Input sensitivity LINE 700mV , MM 5mV
Input impedance LINE 100k ohm , MM 47k ohm

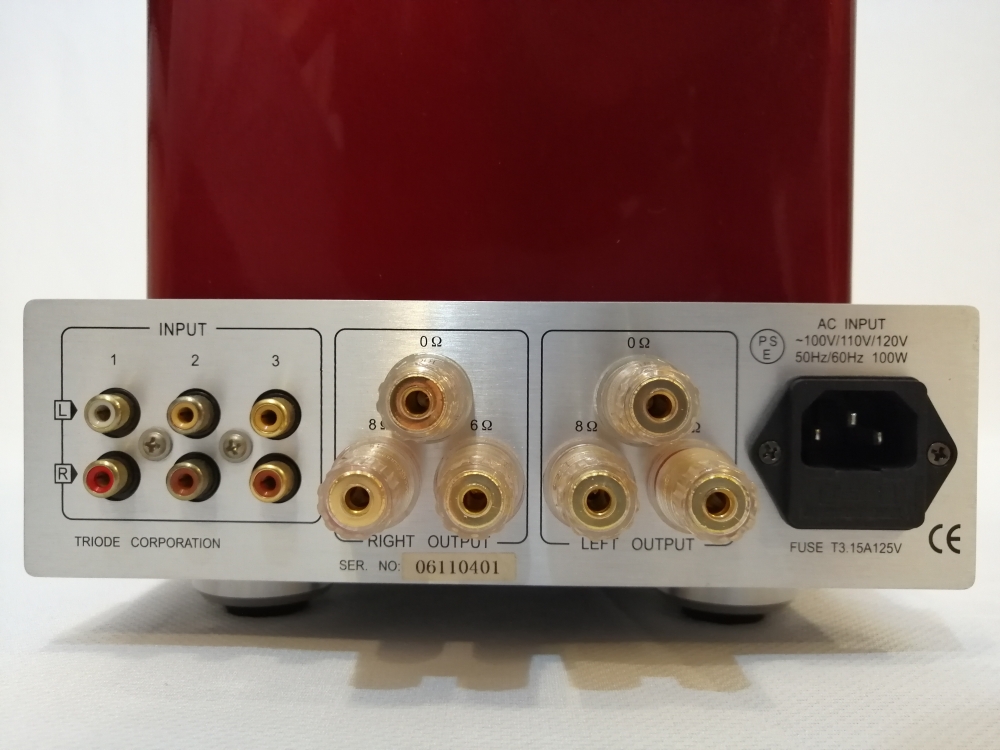

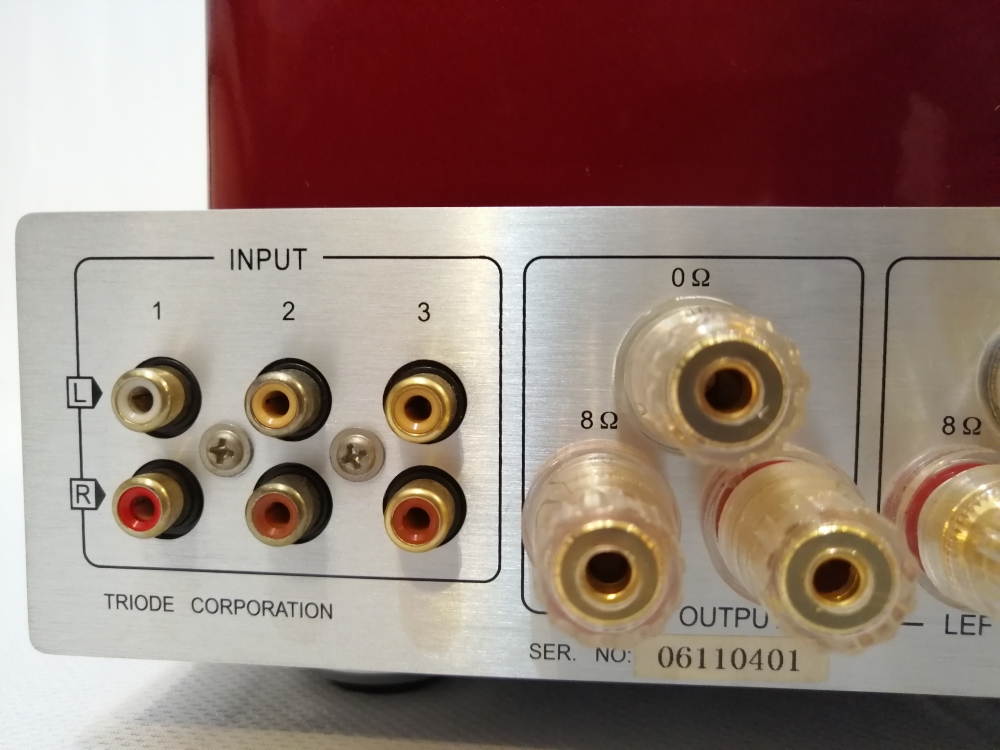

Input terminals RCA unbalanced*3(LINE1-3) , MM*1
Output terminals REC OUT*1

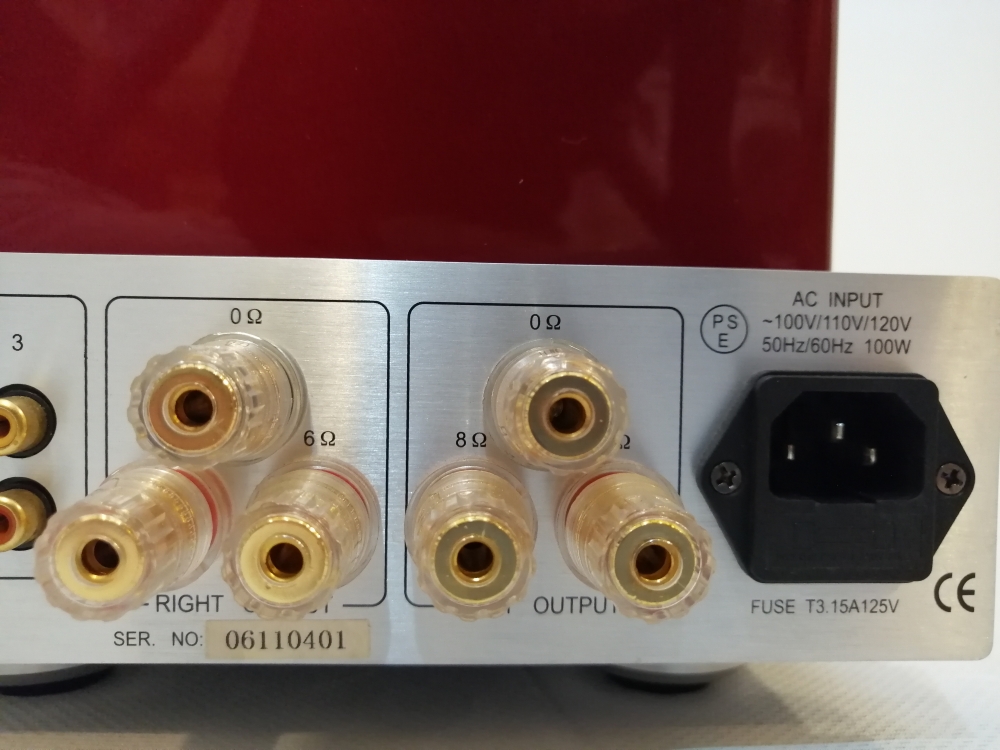

Speaker output terminals 6 ohms , 8 ohms
Headphone output 6.3mm stereo jack
Equipped components High quality speaker terminal
Other functions Remote control (Volume , Mute)
Power consumption 120W (No signal)
Dimensions W345mm*D320mm*H200mm
Weight 17kg
