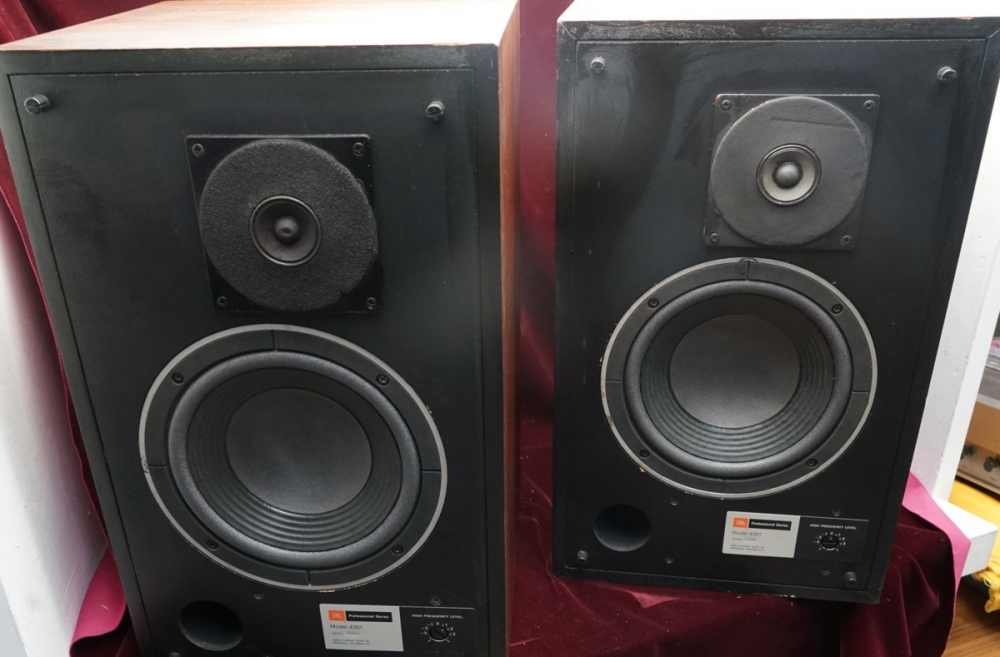

| method | 2-way, 2-speaker, bass reflex system, bookshelf type |
| Unit used | For low frequencies: 20 cm cone type (116A) For high frequencies: 3.6 cm cone type (LE25-2) |
| Frequency characteristic | 45Hz-15kHz ± 3dB (sine wave, on axis) |
| Directional characteristics | Horizontal / Vertical: 90 ° (up to 10kHz, within -6dB) |
| Maximum allowable input | 15W (RMS) |
| Impedance | 8Ω |
| Crossover frequency | 2.5kHz |
| Output sound pressure level | 88dB / W / m (new JIS) 39dB / 1m W / 9.1m |
| Enclosure internal volume | 28L |
| Size | Width 291 x Height 483 x Depth 306 mm |
| weight | 12kg |
