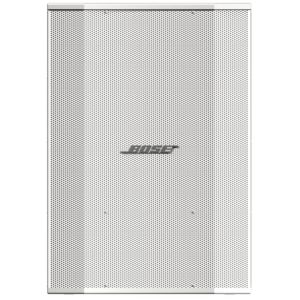

Bose LT9403 Passive Speaker - White

----------------------------------------------------   Overview   ------------------------------------------------

  Product Description

The Bose® LT 9403 is a full-range 3-way loudspeaker designed as the primary reinforcement source for smaller venues, or for use with other LT loudspeakers to form Coherent Zone arrays in medium to large venues. The large-format waveguide and 90° x 40° pattern deliver precise coverage and high intelligibility, providing a cost-effective alternative to multiple-cabinet line arrays for many applications.

  Features

• 90° x 40° coverage for short-throw applications in auditoriums, worship facilities, performing arts centers and arenas
• Full-range loudspeaker with single 15” (381 mm) woofer provides 50 Hz bass to reduce the need for additional low-frequency speakers in smaller venues
• Bose® V2 midrange manifold sums output of 2 x 4.5” (114 mm) extended-range cone drivers for lower breakup distortion and improved transient response. It provides a smoother, more natural vocal range compared to single 8” to 12” woofers. The LT 9403 loudspeaker utilizes a single Bose V2 midrange manifold
• Bose large-format waveguide provides an effective 90° x 40° pattern control to approximately 300 Hz (horizontal) and 1.5 kHz (vertical). Minimizes loudspeaker overlap in arrays to reduce comb-filter interference and improve intelligibility

​

  Applications

Designed for a wide range of applications, including:

• Indoor arenas
• Houses of worship
• Auditoriums
• Performing arts venues
